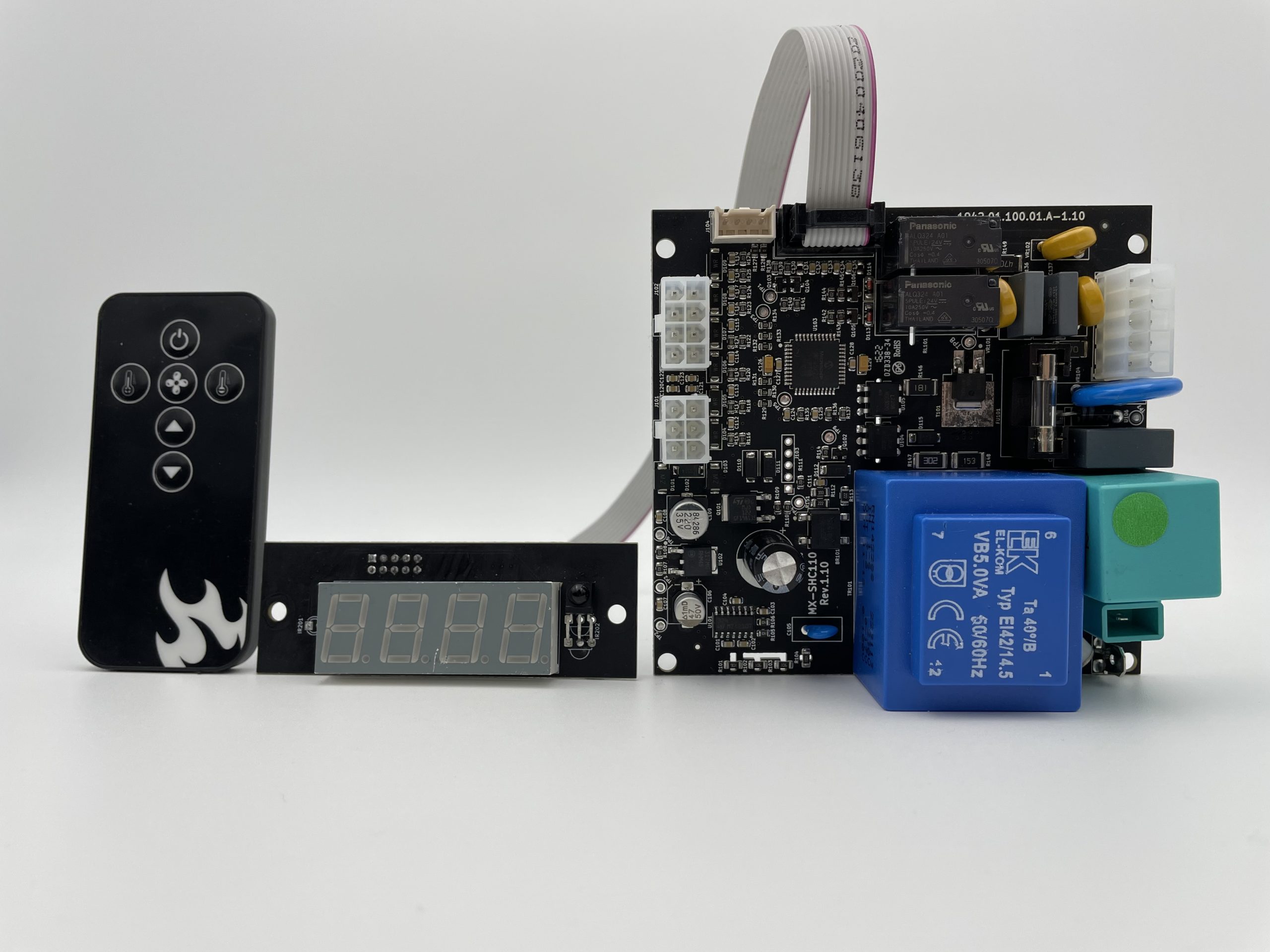

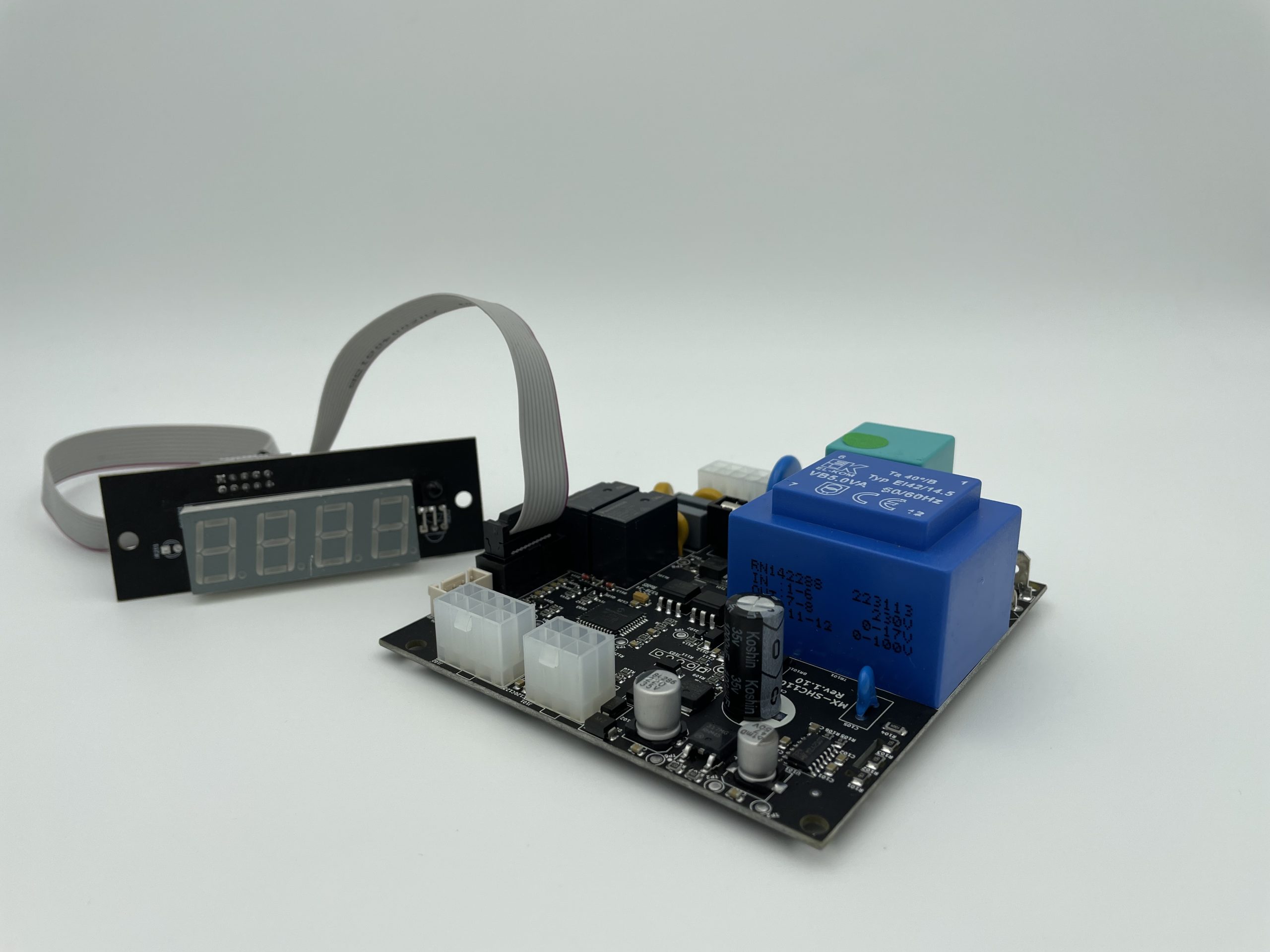

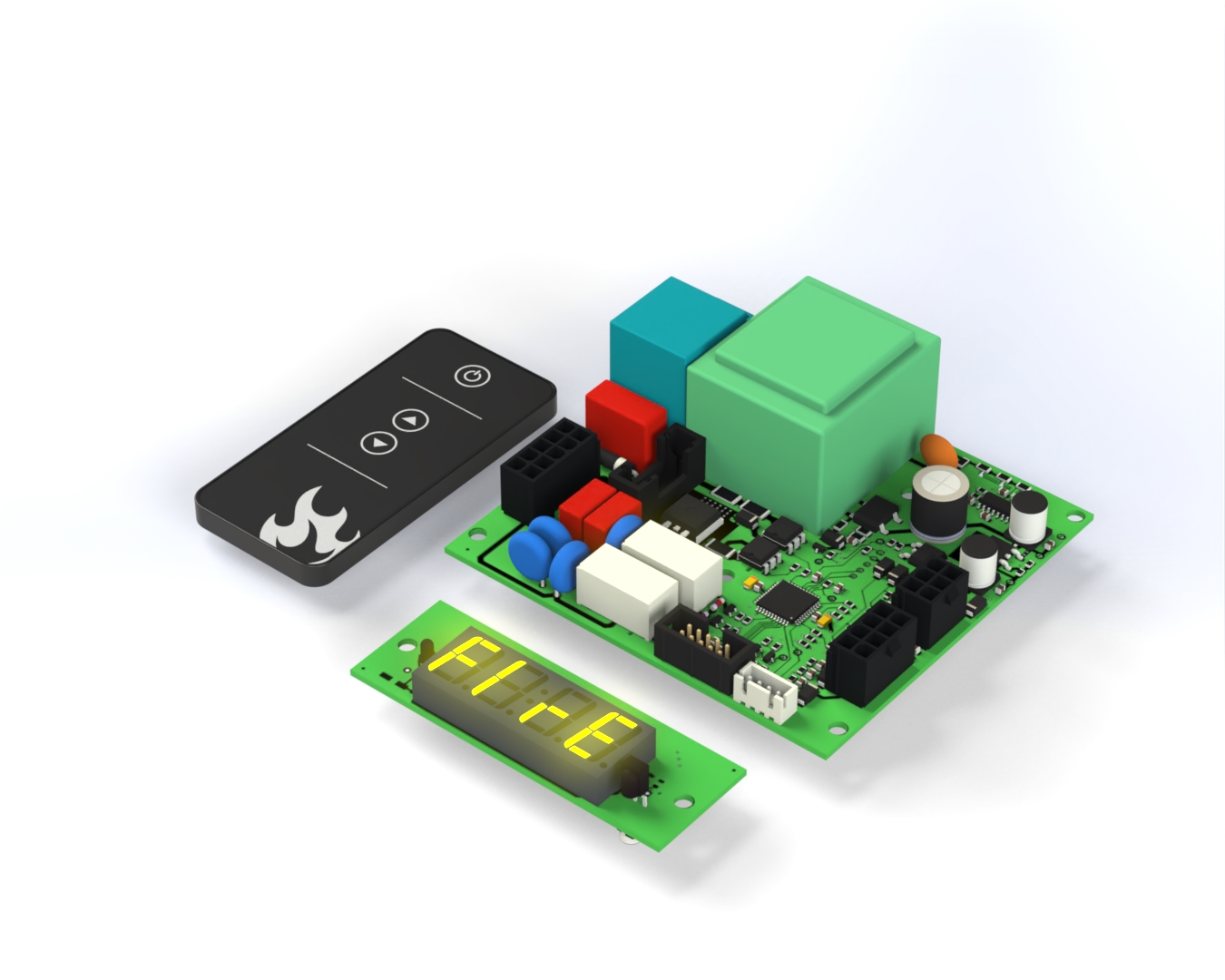

LNG-LPG Heating Control System
1942-V1.00
It is suitable for use in all natural gas applications with natural and forced draft. It can work in full compatibility with different types of valve and fan groups. It can operate in ON/OFF and 3-stage modes. Since ignition and flame detection are provided from a single electrode, it provides cost and installation advantages. It controls your entire application without the need for any additional products. With computer software and wireless parameter loader, it allows you to remotely load parameters and control operating modes of the device. It meets all your needs with a single card without the need for different control cards for different types of devices. With our expert team and experience in this field, we also offer instant updating, development, and customization options according to your needs.
Related Products
Fields of Application
- Infrared Radiant Heaters
- Tubular Radiant Heaters
- Natural Draught Burner
- Forced Draught Burner
- Natural Gas Stove
- Hot-Air Generator
Main Features

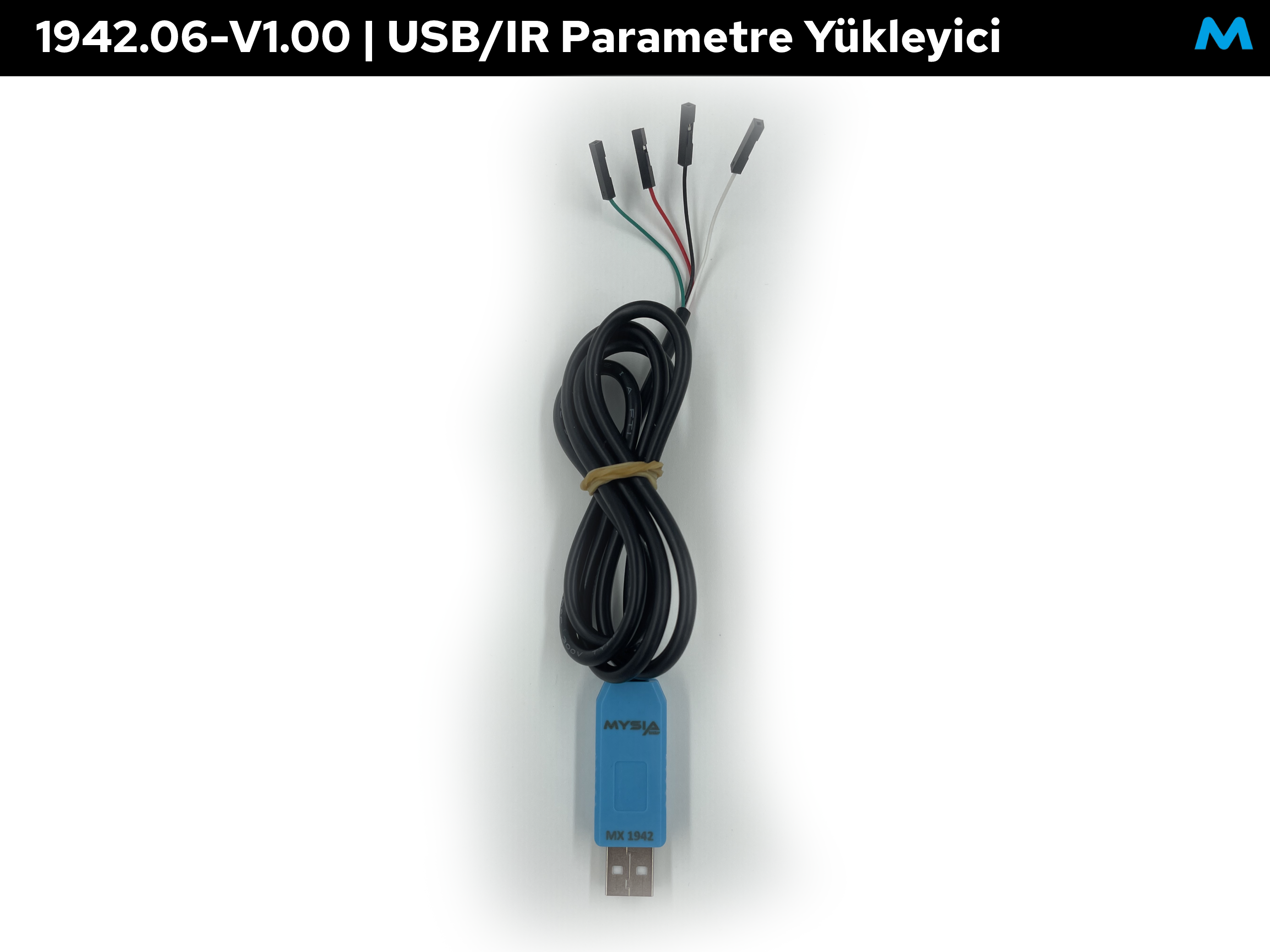

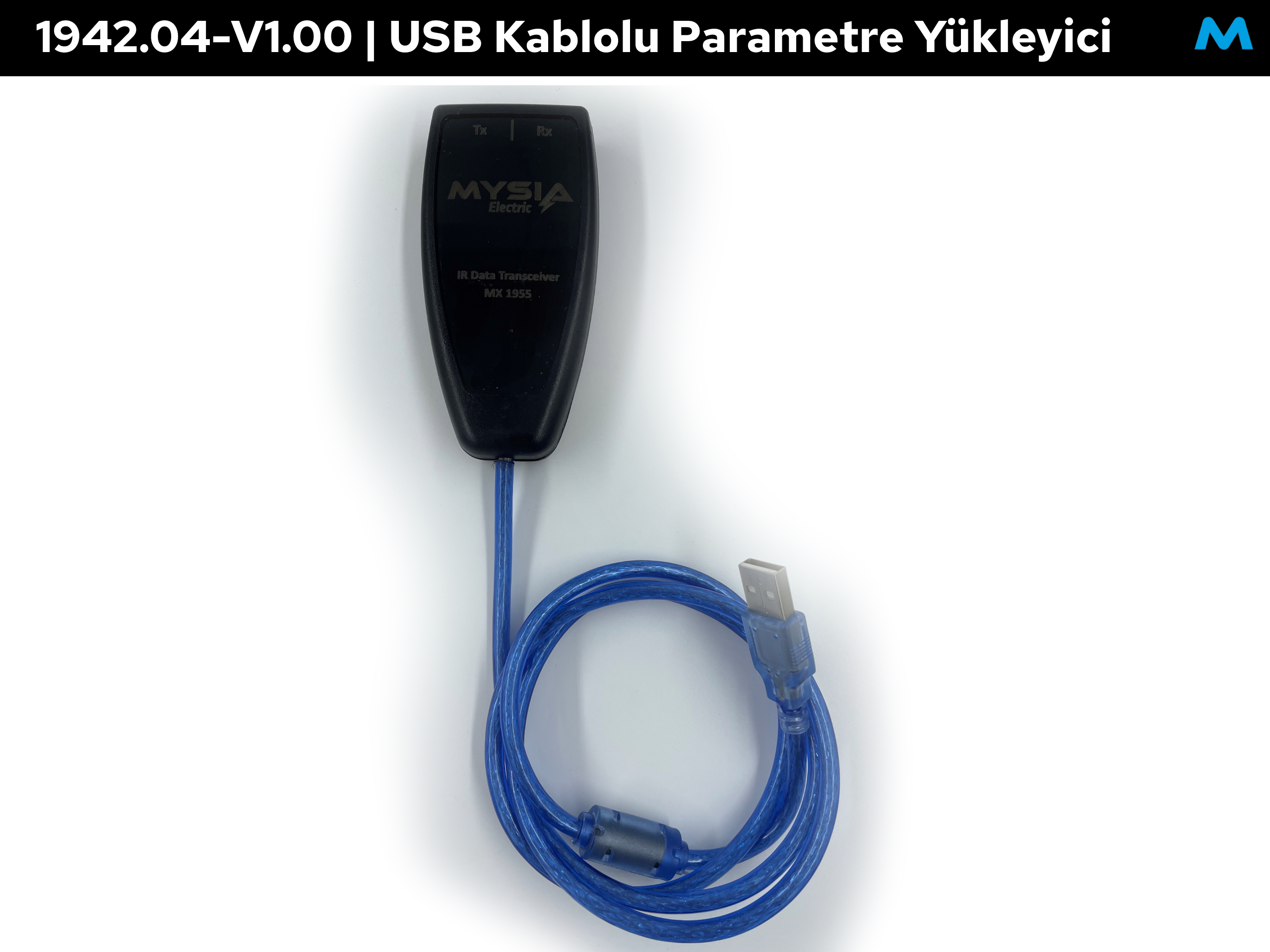

- Multi-functional ignition control card, remote control, wired/wireless parameter loader
- ON/OFF, low/medium/high or electrical modulation control
- Built-in display, remote control and computer program support
- Fan speed control
- Temperature sensor inputs
- Customizable extra inputs and outputs
- Flame detection sensor
- Wireless parameter reading/writing
Technical Specifications
| Supply Voltage | 230V~ 50Hz |
| Power Consumption | <4W |
| Fuse | 5A Fast Blow |
| Flame Detection | Ionization, 0.6 uA min. |
| Protection Class | IP40 (For Boxed Type) |
| Storage Temperature | -20°C … +80°C |
| Operating Temperature | -10°C … +60°C |
| Timing | Pre-Purge: 0-60 sn Post-Purge: 0-60 sn APS Test: 0-60 sn Flame Detection: 0-5 sn Extinguishing Detection: 0-5 sn Ignition Time: 1-9 sn |
| Connections | Peripheral Connections: Molex MINIFIT Display Connection: IDC Box Header Ignition: 2.8×0.5mm FASTON Terminal Ground: 6.2×0.8mm FASTON Terminal |
| Electrical Values | Gas Valve: 230V~ / 5A (Relay Contact) Modulation Output: 0..165mA @ 13.5V Fan 1: 230V~ / 3A (Triac) Fan 2: 230V~ / 5A (Relay Contact) Alarm: 230V~ / 5A (Relay Contact) |
| Ignition | 18kV / 25uA |
Standards and Regulations
EN298:2022
